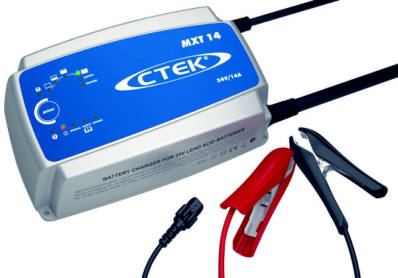

Ctek MXT 14 Battery Charger

Features

The MXT 14 is a professional 24V charger. It is developed for commercial vehicles where the batteries are put under considerable strain and is ideal for busses, trucks and commercial vehicle workshops. The MXS 14 is equipped with all necessary features and functions to solve a broad range of battery related problems. It offers features such as battery diagnosis which shows whether a battery can receive and retain a charge, a special reconditioning function that restores stratified and deeply discharged batteries, unique maintenance charging and a temperature sensor for optimised charging, regardless of the weather conditions. It also has a power supply mode which allows the battery to be disconnected from the vehicle without losing important configurations.

The MXT 14 is a fully automatic 8-step charger that delivers 14A to 24V batteries from 28-300Ah. The charger is IP 44 rated (outdoor use), designed to protect vehicle electronics and non-sparking, reverse polarity protected and short-circuit proof. It is delivered with a 2-year warrant

General Information
Model number: 1056
Output Voltage: 24V
Rated Voltage AC: 220-240VAC, 50-60Hz
Charging voltage: NORMAL: 28.8V, RECOND: 31.6V, SUPPLY: 27.2V
Min battery voltage: 2.0V
Charging current: 14A max
Current, mains: 2.9A rms (at full charging current)
Back current drain: <1Ah/month
Ripple: <4%
Ambient temperature: -20°C to +50°C, output power is reduced automatically at high temperatures
Charger type: 8 step, fully automatic charging cycle
Battery types: All types of 24V lead-acid batteries (WET, MF, Ca/Ca, AGM and GEL)
Battery capacity: 28-300Ah
Dimensions: 235 x 130 x 65mm (L x W x H)
Insulation class: IP44
Weight: 1.9kg
