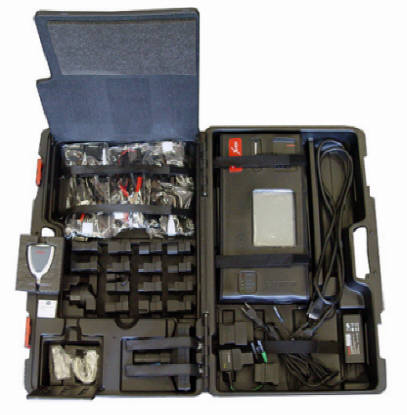

Launch x431 Master

Launch x431 Master

Features
X431 Master is a new automotive diagnostic product and designed by LAUNCH with the technology of 'Open Control Platform for Vehicle' representing the highest level of automotive diagnostic technology in the world. It has the function of read DTCs, read datastream, actuation test, sensor waveform display and ECU coding. It's faster to communicate with cars than X-431 by integrated structure to save time in work. It can test most of cars by using the unique 16 PIN connector which integrates the function of all 16 PIN connectors of X-431.

24V operating voltage capability is added to work with different kinds of batteries
. It is easier and more conveniet to operate than X-431 based on the smart design


Product characteristics:
1. Inherited with all diagnosis function of X-431
2. Faster communication with cars than X-431 by integrated design to save time in work
3. All inclusive software coverage - European, American and Asian
4. 24V operating voltage capability is added to work with different kinds of batteries
5. Powerful diagnostic function: read DTCs,read datastream, actuation test, sensor waveform display and ECU coding
6. Test most of cars by using unique & integrated 16 PIN connector
7. Easier and more conveniet to operate than X-431 based on the smart design
8. Upgrade software anytime and anywhere to keep up with latest models

Product parameters:
Operating System: Linux
Memory: 16M
CF Card: 512M
Main Unit I/O: Universal serial port/parallel port
Power Supply: DC 12V / 24V
Power: Approx. 9W
Screen: 240X320 LCD touch screen with background light
Printer: Mini high speed thermal printer
Ambient Temperature: -15C~50C
Relative Humidity: <90%
