Headlight Aligner

Headlight Aligner

Features
NHD 8000

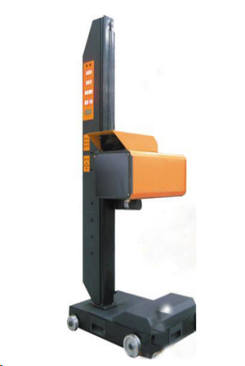

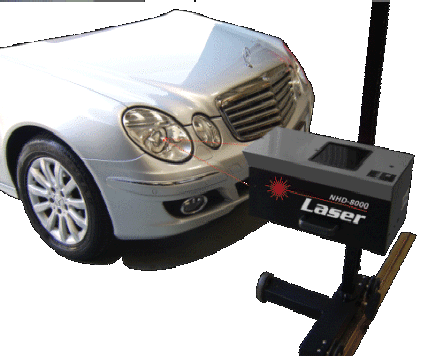

The NHD 8000 Headlight Beam Setter incorporates the latest ''Dual Laser'' system that provides accurate MoT Test Height positioning , Horizontal Centering and Distance Checking with just one press of a button Designed to comprehensively test ALL types of Conventional, Halogen and Xenon headlamps the NHD 8000 is VOSA approved for all Classes of MoT Vehicle Testing including HGV. Robustly constructed, the NHD 8000 is supplied with the ''Dual Laser'' positioning system, a twin line ''Mirror Aimer'' visor and a ''Twin rail'' traverse guidance system as standard.

Key Options include:

Digital Lux Meter
''Laser Aimer''
HGV Upgrade Kit

Specifications

1.  Nominal range of usage
     temperature:0-40°C;
     relative humidity :≤80%;
     power:AC220V-DC5V
2.  Measurement range:
     Luminous intensity:0-40000cd  0-80000cd
     Axis deviation:
             Vertical direction:Up1º20´~Down2º20´;
            Horizontal direction:Left2º20´~right2º20´;
3.  The indicated error for luminous intensity:±12%;
4.  The indicated error for axis deviation:±15'
5.  Measuring range of lamp height:0.4~1.3m;
6.  Testing distance:1m;
7.   Weight:25kg.

Headlight Tester (GY3-B

Headlamp Aligner - (SV-D2T)
